Ultra-thin heat spreaders
Feature

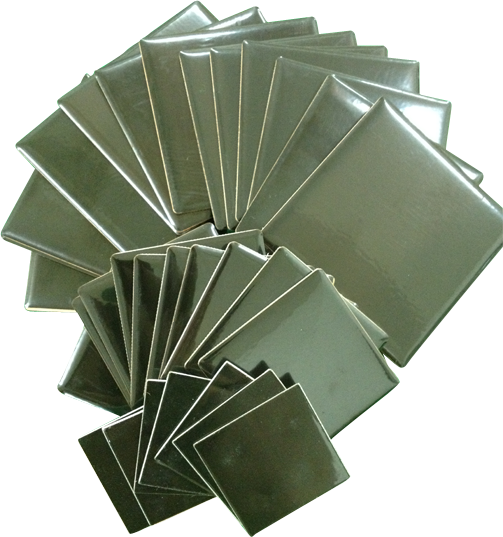

C-Cooler is the ultra-thin heat spreaders provides a low-cost, effective means of cooling IC devices in restricted spaces where conventional heat sinks aren’t appropriate.
C-Cooler spreaders consist of 99.99% Oxygen-free copper sandwiched between electrically insulating films and adhesive, will long-term and stable cooling.
High strength PSA (pressure-sensitive adhesive) provides a strong bond to the component. The TYPE-A heat spreaders permits nearly 100% adhesive contact with non-flat package surfaces, Copper has good heat emission could be effective to discharge heat.(K=400)

Function
*Component junction temperature reduction of 10-20°C
*Easily added to existing designs to lower component temperatures, improve reliability.
* Conforms to complex design and non-flat surfaces.
* Allows use in limited environments, highlight the value of application.
* Easier to peel and stick any non-flat component surfaces.
* Costs are kept under control.
* Low application force minimizes risk of damage to component.
* Replace graphite.

Application
* CPU
* Memory Module
* PDA、notebook.
* Communications and Internet
* Various types of heat.
SERIES C-Cooler
MODEL TYPE-A TYPE-B TYPE-H TEST METHOD
APPEARANCE
Total Thickness 0.4 mm 0.8 mm 0.3 mm ASTM D374
PSA Thickness (type) 0.1mm
(Acrylic)
0.2mm
(Acrylic)
0.05mm
Thermal Conductor Thickness 0.2mm
(Copper)
0.5mm
(Copper)
0.2mm
(Copper)
Insulator Layer Thickness 0.05 mm 0.05 mm 0.05 mm
Voltage Breakdown 5KVac >10KVac >2KVac ASTM D149
Adhesion (To Steel) 1.85 Kg/in 2.0 Kg/in 1 Kg/in ASTM D1000
RoHS Compliant Yes Yes Yes SGS
