Products

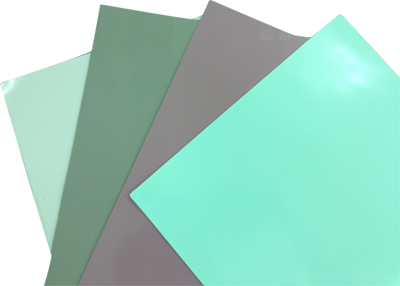

Gap filler &Insulator pads
Feature:
  1. Ultra soft and high compressibility and low thermal resistance.
  2. Very good insulator.
  3. Available to molding for different shape, and wide selections with products of thickness.

Function:
  1. Conduct the excess heat current from heat components to an interface or mechanical structure that possesses a better thermal effect.
  2. Enhance the thermal conduction between heat-generating components and heat sinks.
  3. Provide insulation among electronic components.
  4. High compressibility.

Applications:
  1. For CPU and notebooks and all other transistors.
  2. Applies to all types of networking and communications products. Ex: base station、router 、and hub modem system.
  3. For power products and all power supplies.
  4. All kinds of consumer products. Ex: TV、Set Top Box.
  5. For power transistors in all other electronic appliances.

VK-SERIES
  • Good thermal conductivity thermal gap pad.
  • Meet any scope to use.
  • Fully corresponding the grade of imported product, well worth it's value and easy-to-use.
  • The thickness and adhesive can be ordered.
  • More special high K value material.
  • Series of thermally conductive insulators with good price.(0.2t、0.25t、0.3t)
  • New Non-Silicone products, T:0.25mm, high thermal conductivity and steady.
SERIES GAP FILLER
MODEL VK-6150 VK-6200 VK-6320 VK-6400 VK-6500 TEST   METHOD
Color White Purple Dark Gray Light Green Grey --
Construction&
Composition
Ceramicfilled
silicone elastomer
--
Thickness 0.5~15mm 0.5~15mm 0.5~15mm 0.5~5.0mm 0.5~5.0mm ASTM D374
Specific Gravity 2.25 2.15 2.25 3 1.76 ASTM D792
Hardness 20 20 20 8 10 shore A
Thermal Conductivity 1.5 W/mk 2.0 W/mk 3.2 W/mk 4.0 W/mk 5.0 W/mk ASTM D5470
Voltage Breakdown >5KV/mm >5KV/mm >5KV/mm 15KV/mm 8KV/mm ASTM D149
Continuous Use Temp ﹣60℃ to 200℃
